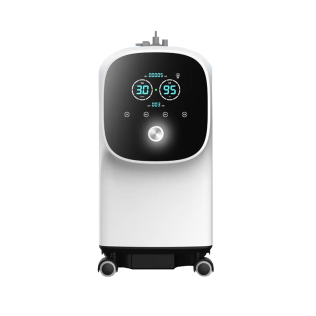

6L Medical Oxygen-Concentrator

6L Medical Oxygen-Concentrator

Model Y510W
Oxygen Purity
93%(±3%)0.5-0.6/min
Oxygen output
1L-6L adjustable
Atomization Rate ≥0.2ml/min
Rated voltage
AC220±22v(or 100v)50-60Hz
Input power
400VA(W)
Negative ion function The use of high-frequency negative ion transmitter
Oxygen generation method Pressure swing adsorption(PSA)
Net weight 22kg
Size(cm) 362(L)*370(W)*712mm(H)
Cartoon pieces
1pcs/cartoon


DETAILS

Medical Oxygen Concentrator 1L-6L Adjustable :


1. Oxygen concentrator machine with 93%± 3% oxygen purity, 1-6L/M adjustable flow rate.
2. Oxygen concentrator for medical use has 8 grade filtration system,it can provide clean and safe oxygen for you.
3. Oxygen concentrator has flow regulation and timer operation function .
4. The noise is less than 38.2dB(A), night use will not affect sleep.
5. The continuous working time is 24 hours. It can work 7/24. It’s not battery back up.
6. Customization for oxygen concentrators is acceptable.

Packaging :

Main Device *1;

Power plug *1;

Nasal Tube *1;

Atomization Cup*1;

Ear Absorber*1;

Replacement filter*2;

English Manual*1.


Specification :

Model
Y510W
Oxygen concentration
93%± 3%
Display control
HD LED touch screen
Rated voltage
220V 50Hz /110V 50Hz
Net weight
22kg
Operating noise
≤38.2dB(A)
Oxygen generation method
Pressure Swing Adsorption(PSA)
Size

362(L)*370(W)*712mm(H)

Inhalation method
Ear hanging oxygen, Nose suction (earhook oxygen inhaler, nasal cannula)
Oxygen output
1L-6L adjustable
Max Oxygen flow rate
6L/min
Negative ion function
The use of high-frequency negative ion transmitter
Input Power
400VA
Oxygen outlet pressure
20-70kPa
Storage and transportation condition
Temperature range: -20℃~+55 ℃
Relative humidity: ≤ 95%RH
Normal working environment
Atmosphere pressure: 500hPa~1060hPa(10.15psi~15.37psi)
Ambient temperature :5℃-40℃
Relative humidity:30%~80%RH
Air pressure:860hPa-1060hPa
